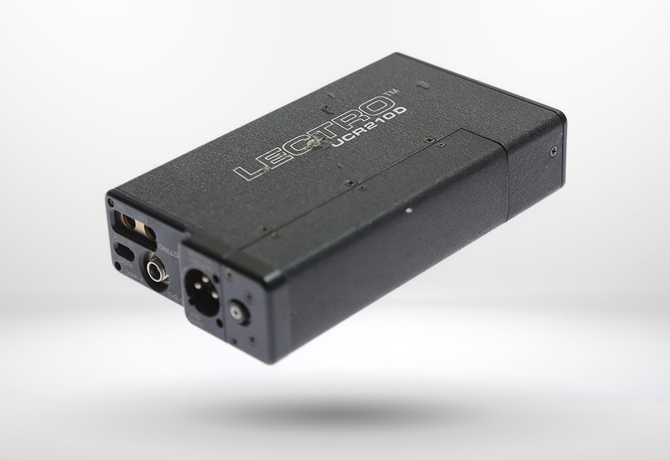

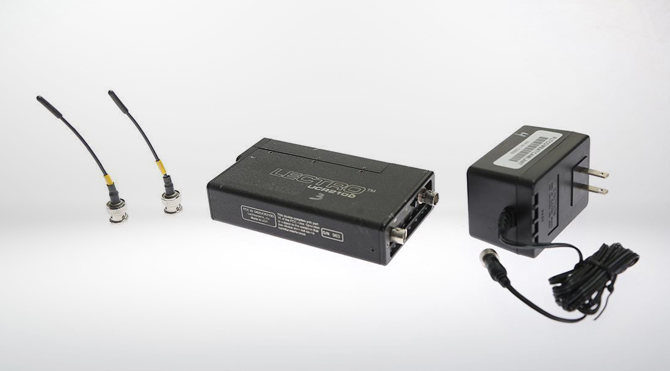

The UCR210D is a portable, high performance, triple-conversion, frequency synthesized, UHF receiver. The RF performance is extremely stable over a very wide temperature range, making the UCR210D perfectly suited to the rough environmental conditions found in the field. The proprietary audio processing includes a dual-band compandor for very low distortion and a superior signal to noise ratio. The Smart Squelch system is operated by a separate pilot tone and mutes the audio output directly at the output connector.
10,00 € day price excl. VAT
• Operating frequencies: 716.8 to 742.3 MHz
• Frequency Adjustment Range: 25.5 MHz in 100kHz steps
• Receiver Type: Triple conversion, superheterodyne, 71MHz , 10.7MHz and 300kHz
• Frequency Stability: ±0.002 %
• Front end bandwidth: +/- 5.5MHz @ -3dB
• Sensitivity: 20 dB Sinad: 0.8 uV (-109 dBm), A weighted | 60 dB Quieting: 1.12 uV (-106 dBm), A weighted
• Squelch quieting: Greater than 125 dB
• AM rejection: Greater than 60 dB, 2 uV to 1 Volt (Undetectable after processing)
• Modulation acceptance: >90 kHz
• Image and spurious rejection: >85 dB
• Third order intercept: +12 dBm
• Diversity method: Phased antenna diversity
• FM Detector: Digital Pulse Counting Detector operating at 300kHz
• Antenna inputs: Dual BNC female; 50 Ohm impedance
• Audio outputs: Rear Panel XLR: Nominal 600 Ohm balanced, three level ranges: LO - Variable -50 dBm to -20 dBm | MID - Variable -30 dBm to 0 dBm | HI - +7 dBm line level.

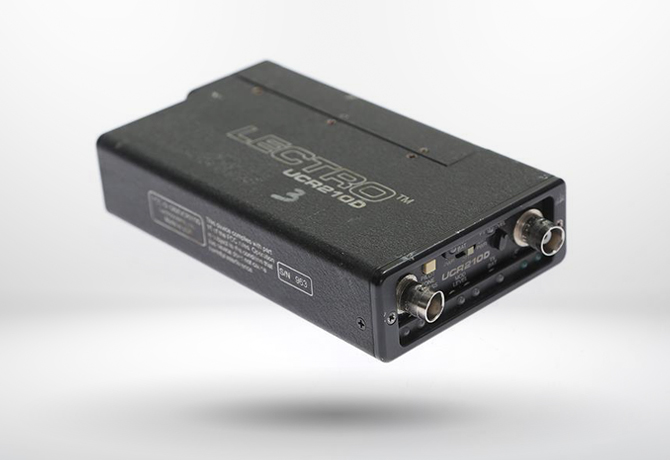

• Front Panel Controls and Indicators: Main and Diversity antenna BNC connectors; Rotary volume control; Power switch and LED; 3 stage pilot tone LED; Three LED, 10 stage RF signal level; Two LED, 5 stage TX mod level; 4 stage RX battery level LED; 4 stage TX battery level LED; Two diversity LED’s.
• Rear Panel Controls and features: XLR audio output jack; Frequency selection switches; External DC input; Audio level range
select switch.
• Power Options: Ext DC: Minimum 9 Volts to maximum 16 Volts DC; 1.6 W, 130 mA at 12VDC
• Int Batt: Four AA alkaline or lithium
• Battery Life: Four AA alkaline - 4 hours continuous; 7 hours intermittent
• Four AA lithium - up to 16 hours (continuous and intermittent usage are the same)
• Weight: 20oz.
• Dimensions: 3.23" wide x 1.25" high x 6" deep
