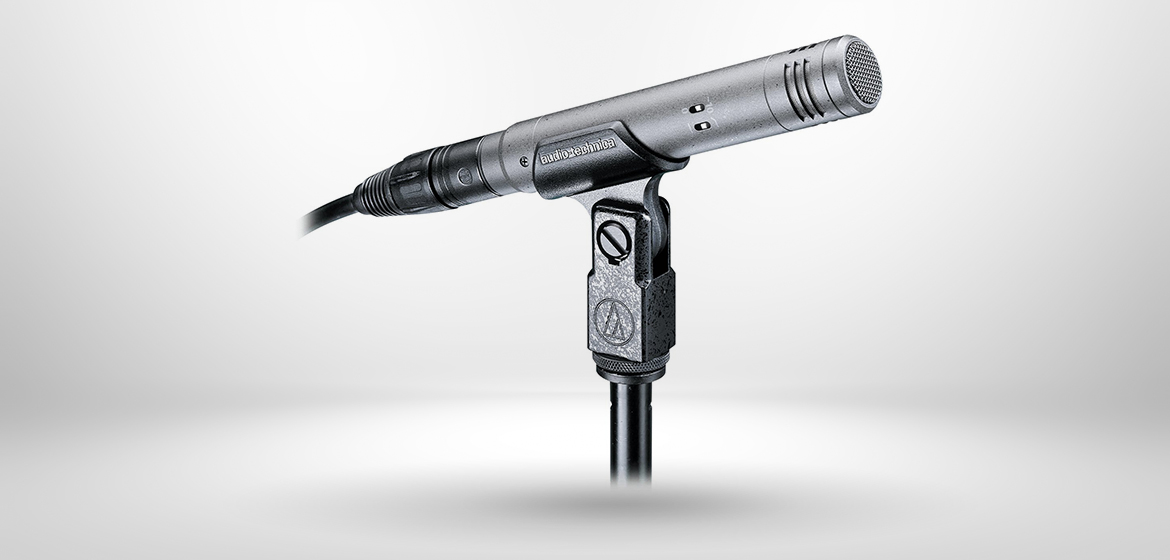

The AT3528 is a wide-range fixed-charge condenser microphone with a cardioid polar pattern. Featuring excellent performance specifications, this versatile microphone is designed to meet the needs of professional musicians in a wide range of applications, from project studio recording to high-quality sound reinforcement. It is also suitable for use in broadcasting and other situations which demand exceptional audio reproduc- tion coupled with enduring reliability.
6,00 € day price excl. VAT
• Element: Fixed-charge back plate permanently polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 30-20,000 Hz
• Open circuit sensitivity: –51 dB (2.8 mV) re 1V at 1 Pa
• Impedance: 100 ohms
• Maximum input sound level: 147 dB SPL, 1 kHz at 1% T.H.D. 157 dB SPL, with 10 dB pad (nominal)
• Dynamic range (Typical): 123 dB, 1 kHz at Max SPL
• Signal-to-noise ratio: 70 dB, 1 kHz at 1 Pa
• Hi-pas filter (low-end roll-of): 80 Hz, 12 dB/octave
• Power requirements: 48V phantom (±4V), 4 mA typical
• Swirches: Flat response, hi-pass; 10 dB pad (nominal)
• Weight (less accessories): 3.7 oz (105 grams)
• Dimensions: 4.93" (125.3 mm) long, 0.83" (21.0 mm) maximum body diameter
• Output connector: Integral 3-pin XLRM-type
