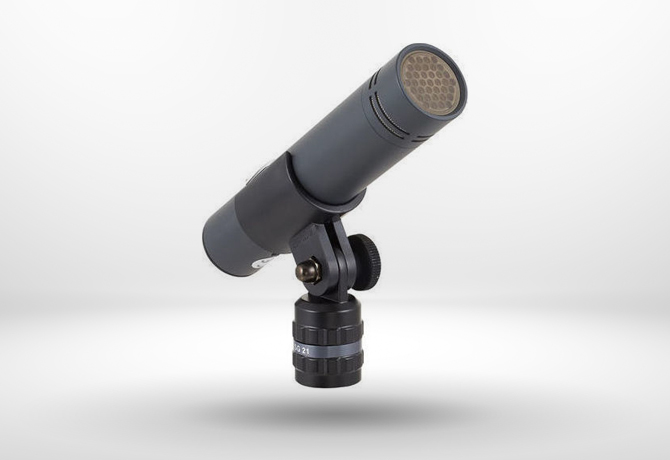

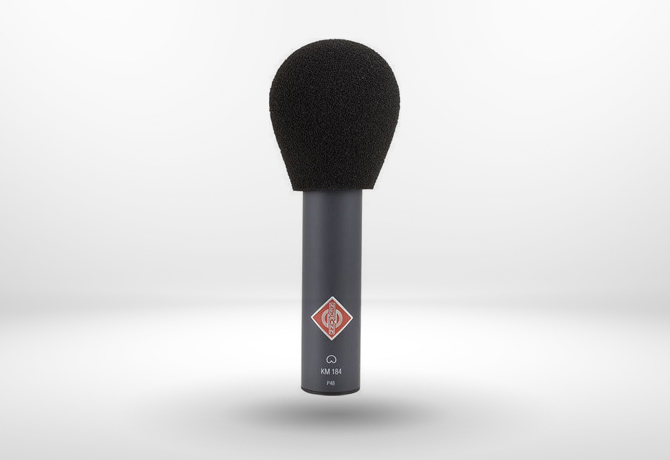

The KM 184 is a state-of-the-art small diaphragm condenser microphone with a uniform, frequency-independent cardioid polar pattern. Its very natural, transparent sound with very low self-noise and high SPL capability have made the KM 184 a worldwide stage and studio standard for many applications ranging from classical piano to heavy metal drums.
Features
• uniform cardioid pattern without off-axis coloration
• linear frequency response with a slight treble lift
• very low self-noise (13 dB-A)
• low impedance output for long cable runs without transmission losses
• transformerless circuitry
• compact size, visually unobtrusive
12,00 € day price excl. VAT
• acoustical operating principle: pressure gradient transducer
• directional pattern: cardioid
• frequency range: 20Hz up to 20kHz
• sensitivity at 1kHz into 1 kOhm: 15mV/Pa +/1dB
• rated impedance: 50 Ohms
• rated load impedance: 1 kOhms
• equivalent noise level, CCIR: 22dB
• equivalent noise level, A-weighted: 13dB-A
• maximum SPL for THD 0.5%: 138dB
• signal-to-noise ratio, CCIR (re. 94dB SPL): 72dB
• signal-to-noise ratio, A-weighted (re. 94dB SPL): 81dB
• maximum output voltage: 10 dBu
• supply voltage (P48, IEC 61938): 48V +/4V
• current consumption (P48, IEC 61938): 3.2mA
• matching connector: XLR 3 F
• weight: approx. 80g
• diameter: 22mm
• length: 107mm
