A broadcast quality sound solution. Providing the highest flexibility for your video sound and field recording applications.

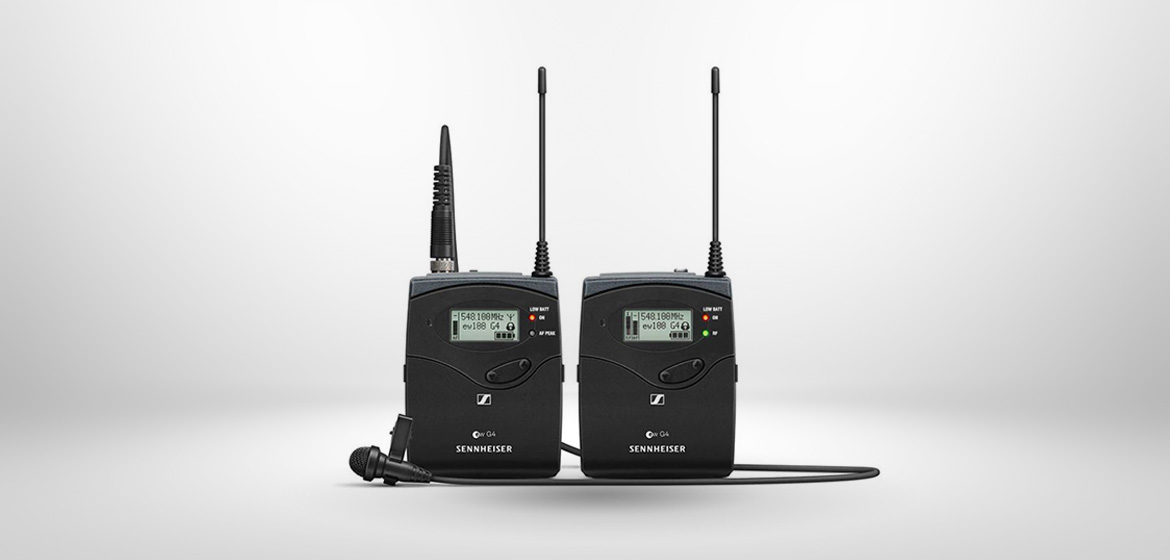

A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use.
Features
• Rugged all-in-one wireless system with high flexibility for broadcast quality sound
• Excellent sound and construction quality
• Easy to use and fast setup time
• Powerful and reliable wireless transmission
• Range: up to 100 meters / 330 feet
• Up to 8 hours of operation time
15,00 € day price excl. VAT
• Dimensions Approx. 82 x 64 x 24 mm
• Compander Sennheiser HDX
• THD, total harmonic distortion - 0.9 %
• Weight (incl. batteries) approx. 160 g
• Audio output 3.5 mm jack socket: +12 dBu (mono, unbalanced)
• Signal-to-noise ratio : 110 dBA
• Switching bandwidth up to 42 MHz
• Peak deviation ±48 kHz
• Nominal deviation ±24 kHz
• Operating time Typically 8 h
• Modulation Wideband FM
• Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption at nominal voltage: typ. 180 mA
• with receiver switched off: 25 µA
• Adjacent channel rejection 65 dB
• Intermodulation attenuation 65 dB
• Powering 3 V battery / 2.4 V rechargeable battery
• Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• RF sensitivity < 1.6 μV for 52 dBA eff S/N
• Squelch low: 5 dBµV middle: 15 dBµV high: 25 dBμV
• Temperature Range -10 °C to +55 °C
• Receiver Principle Adaptive diversity
• Blocking 70 dB
• Dimensions Approx. 82 x 64 x 24 mm
• Compander Sennheiser HDX
• THD, total harmonic distortion 0.9 %
• Weight (incl. batteries) approx. 160 g
• Signal-to-noise ratio 110 dBA
• RF output power Max. 30 mW
• Switching bandwidth up to 42 MHz
• Peak deviation ±48 kHz
• Nominal deviation ±24 kHz
• Operating time Typically 8 h
• Modulation Wideband FM
• Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption at nominal voltage: typ. 180 mA
• with transmitter switched off: 25 µA
• Input impedance 40 kΩ, unbalanced / 1 MΩ
• Max. Input voltage 3 Veff
• Powering 3 V battery / 2.4 V rechargeable battery
• Transmission frequency Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• AF frequency response Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
• Temperature Range -10 °C to +55 °C
• Frequency stability ±15 ppm
