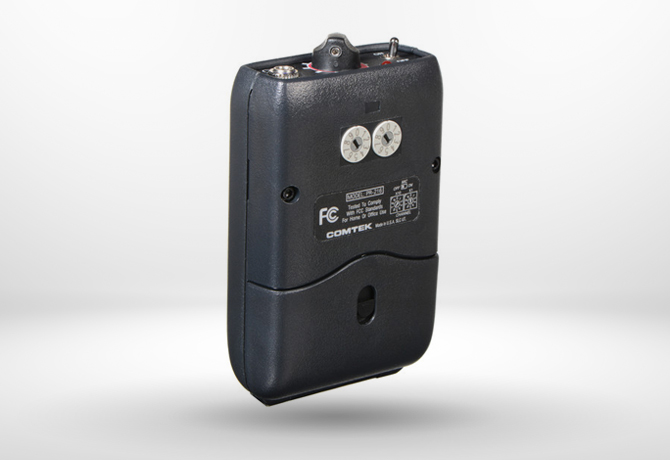

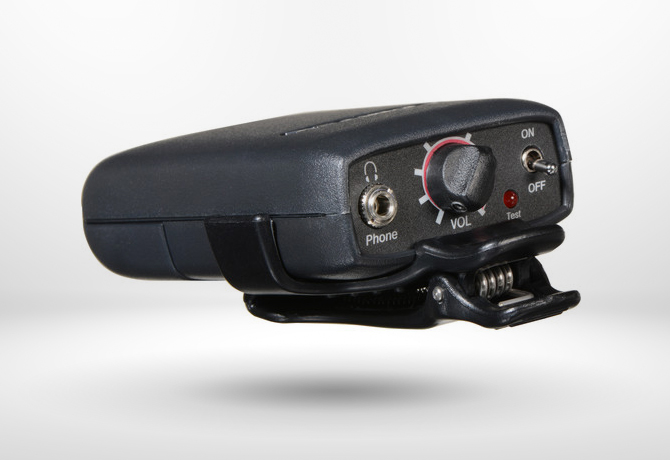

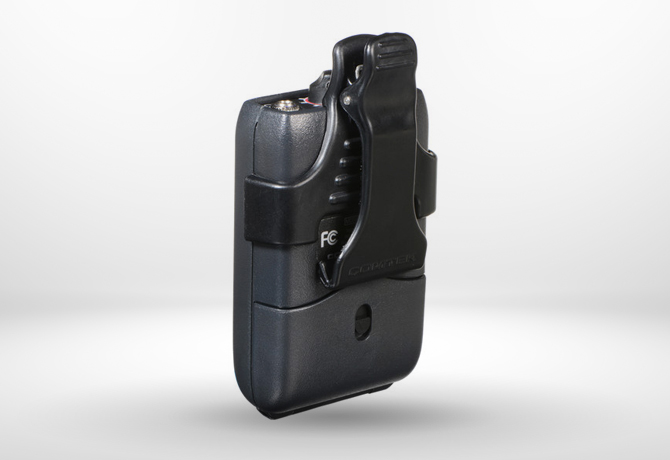

Comtek PR216 Receivers

Full Fidelity Frequency Response • Automatic Audio Processing • High Audio Output Power • Multi-Channel Compatible • Rugged and Durable Design

The PR-216 is our highest fidelity, professional quality, personal monitor receiver designed to work with the M-216, M-216 Option P7, BST 25-216, and BST 75-216 series transmitters. This versatile receiver tunes COMTEK’s high fidelity compounded channels for program monitoring applications as well as standard non-companded, narrow-band channels for speciality applications such as time code links.

It is digitally synthesized and frequency agile for easy multi-channel operation. This receiver is user-friendly, compact, and extremely rugged. Plus, the use of high efficiency, low power consumption microcircuits and advanced digital and analog technologies ensures superior audio performance and outstanding reliability.

  • Cost :

    12,00 € day price excl. VAT

  • Audio Output:

    Headset output +16 dBu (low impedance)

  • Connector:

    Stereo/mono 3.5 mm audio output connector

  • Indicators:

    LED Power/Battery indicator

  • Controls:

    • Power On/Off switch
    • Volume control (50 dB range)
    • 99-position rotary channel selector switches

  • Audio Frequency
  • Response:

    80Hz to 12kHz

  • Harmonic
  • Distortion:

    Less than 1% (80% modulation)

  • Operating Radio
  • Frequency:

    216-217 MHz

  • Frequency
  • Stability:

    0.002% frequency synthesized crystal controlled

  • RF Sensitivity:

    0.5 uV for 12 dB SINAD

  • Adjacent Channel
  • Rejection:

    65 dB 50 kHz off-channel

  • Spurious
  • Rejection:

    60 dB (image excluded)

  • Ultimate
  • Quieting:

    Better than 95 dB Companded Channels

  • Deviation
  • Acceptance:

    Up to 10kHz

  • Antenna:

    Integral with output cable

  • Current Drain:

    15 mA nominal

  • Power
  • Requirements:

    9 volt alkaline battery or rechargeable nickel metal hydride

  • Dimensions:

    1 1/6” x 2 1/2” x 3 1/4” (27mm x 57mm x 83mm)
