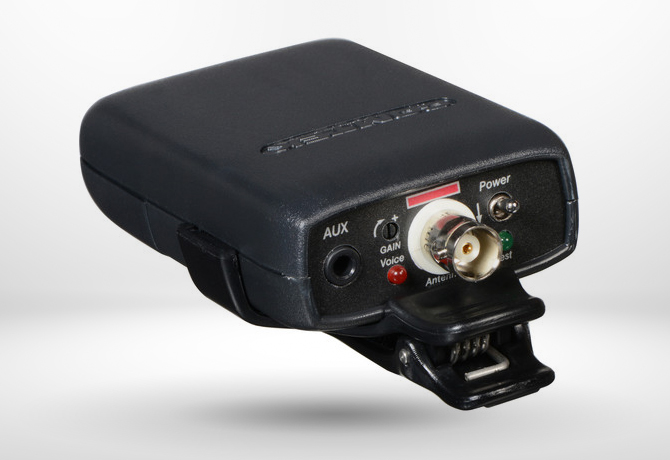

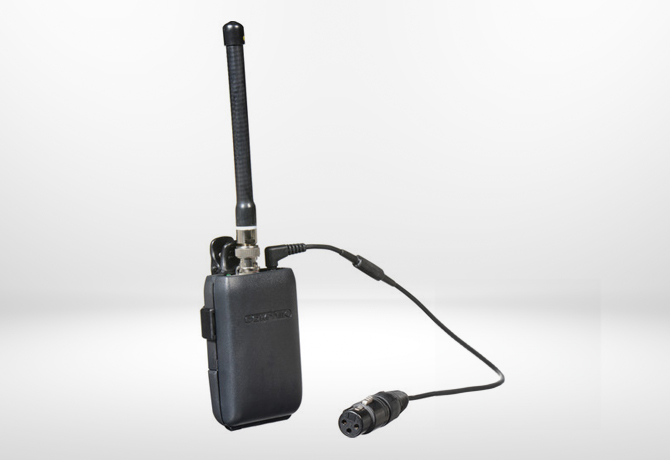

Comtek M216-P7 Transmitter

Greater Operating Range • Rugged, Short Whip Antenna • Extended Frequency Response

The M-216 Option P7 is the perfect on-the-go field transmitter offering directors, crew, and client reliable and superior sounding wireless program monitoring. For use with the PR-216 or PR-216 Option 7 wireless receivers, this portable, battery powered transmitter is built to withstand the most demanding needs of location sound monitoring.

Equipped with a flexible short whip antenna, the M-216 Option P7 offers superior RF transmission and a greater operating range. It has an adjustable dain control an a single LED VU meter that offers a quick visual reference to indicate audio input level. The optional MBS-216 Mounting-Bracket Stand is an ideal way to conveniently position the transmitter and maintain a vertical antenna position. Built with performance in mind, the M-216 Option P7 provides the quality and dependability required by top sound mixers!

  • Cost :

    12,00 € day price (8GB) excl. VAT

  • Audio Input:

    Aux/Line input impedance - 10k Ω at 0 dB nominal

  • Connectors:

    • Auxiliary - Mini 3.5 mm Stereo
    • Audio - Tip and Sleeve
    • Battery Charging - Tip and Sleeve
    • External 9V power - Ring and Sleeve

  • Controls and
  • Indicators:

    Synthesized channel selection switches
    • Power On/Off switch
    • Audio input gain control
    • Power/Battery test and voice level indicator

  • Antenna System:

    BNC short loaded whip antenna

  • Frequency
  • Response:

    80Hz to 10kHz

  • Modulation:

    • 5 kHz deviation Ch. 1-40 (non-companded)
    • 10 kHz deviation Ch. 41-60 (companded)

  • R.F. Power
  • Output:

    10 mW to the antenna system

  • Out-of-Band
  • Emissions:

    Better than 45dB below carrier

  • Current Drain:

    15 mA constant current

  • Weight:

    4 ounces (110 grams)

  • Battery:

    • 9 V alkaline for up to 40 hours of operation
    • 9 V NIckel-Metal Hydride rechargeable to up to 15 hours of operation

  • Dimensions:

    1 1/6” x 2 1/2” x 3 1/4” (27mm x 57mm x 83mm)

  • M-216 Option P7
  • Includes:

    • BC-216 belt clip
    • CB-36 XLRF aux input cable with RF isolation
    • SLW-216 loaded flexible helical antenna with BNC connector
    • C-216 carrying case
