119 User-Selectable Channels • Balanced Mic or Line Level Input • Switchable EQ Circuit for Speech Intelligibility or Full Range High Fidelity

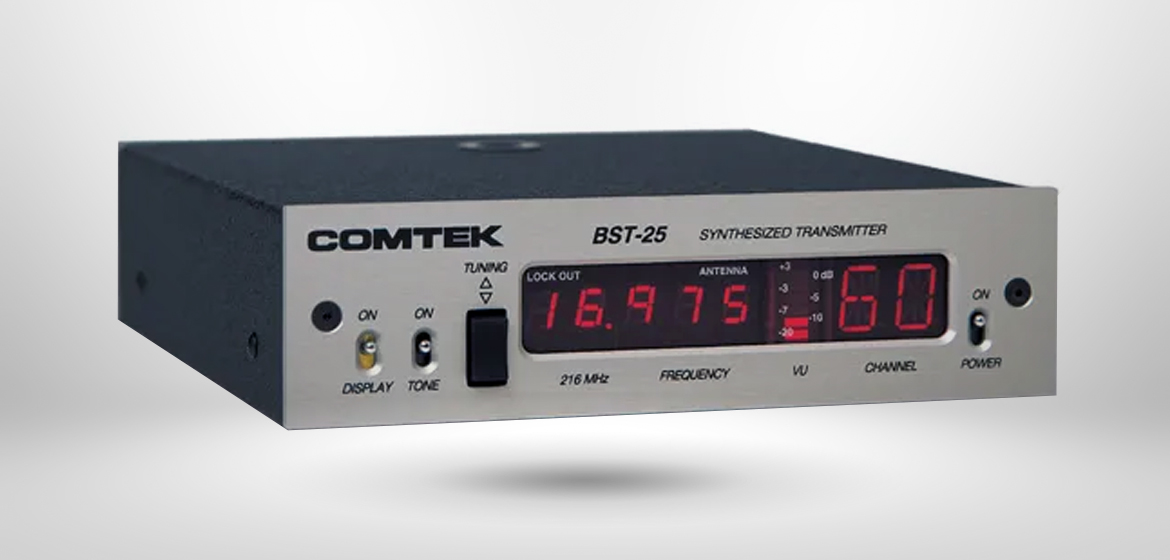

The BST-25 base station transmitter is the most advanced, versatile, and highest fidelity IFB, cueing, and remote program monitoring transmitter available. Especially designed to meet the high demands of the broadcast, film production, and live entertainment industries, the BST-25 may be used as a stand-alone type base station transmitter using the TWA-72 telescoping whip antenna extending from the top of the unit for portable use, or rack mounted and used with a variety of remote antennas for permanent installation in studios or ENG trucks.
20,00 € day price excl. VAT
• Mic: XLR 600 ohm Balanced -40 dBV (nominal)
• Line: XLR >10 k ohm Balanced 0 dBV (nominal)
• Telescopic antenna mounts directly into top of transmitter
• BNC RF output connector for optional external antenna
50 mW for F.C.C. Part 74
• LED Bargraph VU Meter displays audio input (modulation)
• Two-Digit Alpha Numeric Display shows operating channel
• Five-Digit Numeric Display shows operation frequency
• Antenna Indicator displays deficient antenna condition
• Lock-out Indicator shows tuning has been disabled
12 Volts DC, 300 mA max
80 Hz to 10 kHz
Soft compressor type with high (25 dB) linear overload protection, attack time less than 1 ms, recover time 10 ms
Greater than 40 dB
400 Hz 0.05% distortion
• 10 kHz deviation for narrow band channels
• 75 kHz deviation for wide band channels
Better than 0.002% digitally synthesized, crystal controlled
76.2 MHz to 87.8 MHz
Better than 55 dB below carrier
6 1/2”W x 1 3/4”H x 5 5/8”D
44 oz.
